Robolink DP SW | 5 DOF | 790 mm | 2kg


หมายเลขชิ้นส่วน: RBTX-IGUS-0167

Preconfigured 5-Axis Cobot for Precise and Flexible Automation

The robolink® DP is a 5-axis lightweight robot with integrated control cabinet. With a reach of 790 mm, a maximum payload of 3 kg, and ±1 mm positioning accuracy, it’s ideal for precise pick-and-place and handling tasks. NEMA23 XL stepper motors operate at 24/48 V and up to 4.2 A.

Controlled via igus® Robot Control (iRC), it supports standard protocols such as Modbus, TCP/IP, and ROS. Its open interfaces allow for easy integration into existing automation systems.

Typical applications include assembly, machine loading, lab automation, and inspection. Perfect for SMEs, integrators, and educational institutions seeking a ready-to-use, cost-effective robotics solution.

เวลาจัดส่งปกติ: 3 สัปดาห์

Max Reach
790
mm
DOF
5
Max Payload
2
kg
Max Speed
0.05
ms
Repeatability
1
mm

Highlights

https://a.storyblok.com/f/298593/0fe5697753/robolink-dp-5-sw-robot-arm-splash-water-highlight.png

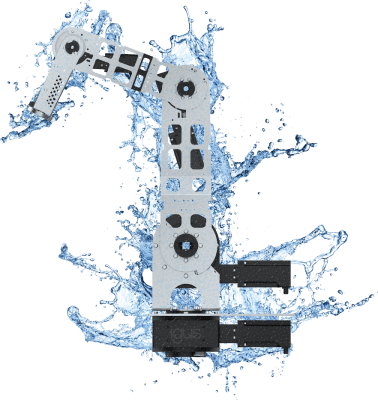

Splash-proof

  • Splash water resistance through for protection class IP 44

  • Stainless connecting elements

  • Motors with encoder with protection class IP 65

https://a.storyblok.com/f/298593/12b15ce6f5/lca_gen_irc-mockup-pc_de_1-removebg-preview__1_.png

Free Download

Download now and try it out in advance

Download the software now for free. This allows you to familiarize yourself with the user interface and functions even before you buy the components. With the Digital Twin you get an overview of the possibilities of your robot. (System requirements: Windows 10 PC, free USB 2.0 port, Ethernet port, 500 MB free storage)

Download now - It's free

https://a.storyblok.com/f/298593/065dc1611c/igus-robot-control-48v-low-cost-irc.png

Includes igus® Robot Control

Modular control and Software

This set enables you to control the robolink® robot arm. With the corresponding software, you can programme and move the robot via a graphical user interface.   Main features:

  • Modular, control system based on top-hat (DIN) rail, easy to extend

  • Smooth motion with 1/256 microstepping

  • Energy saving operation with adaptive current control: Trinamics StallGuard2 and CoolStep Technologies

  • Intuitive control and programming environment with interactive 3D user interface

  • Programming commands like Joint, Linear, If-Then-Else, DigitalOut, Loop etc.

  • Interface to remote computer via TCP/IP

  • ROS packages are available

  • Control cabinet

https://a.storyblok.com/f/298593/cf3a86a4e0/robosteuer_5m_cmyk__1_.png

อุปกรณ์เสริมพร้อมหน้าจอสัมผัส

เลือกการตั้งค่าที่เหมาะสมสำหรับคุณ

คุณสามารถควบคุมหุ่นยนต์ได้ทั้งจากคอมพิวเตอร์ Windows 10 และรีโมทคอนโทรลแบบพกพาที่มีหน้าจอสัมผัส บนเครื่องคอมพิวเตอร์ คุณสามารถตั้งโปรแกรมหุ่นยนต์ได้ง่ายๆ ผ่านทางโปรแกรมที่มีไอคอน รีโมตคอนโทรล ช่วยให้คุณบังคับหุ่นยนต์ด้วยจอยสติ๊กและเริ่มโปรแกรมต่าง ๆ ผ่านหน้าจอสัมผัส นอกจากนี้ คุณยังสามารถใช้เกมแพดที่ต่อกับเครื่องคอมพิวเตอร์ Windows 10 เพื่อควบคุมหุ่นยนต์แทนรีโมทได้อีกด้วย เมื่อตั้งโปรแกรมหุ่นยนต์เสร็จบนเครื่องคอมพิวเตอร์แล้ว คุณสามารถนำไปใช้งานได้เองโดยไม่ต้องต่อกับคอมพิวเตอร์อีกต่อไป (ใช้รีโมทคอนโทรลสั่งงานได้เลย)
