Elite Robot CS66 | 6 DOF | 914mm | 6kg


หมายเลขชิ้นส่วน: RBTX-ELIT-0002

Compact Cobot for Precise Lightweight Automation

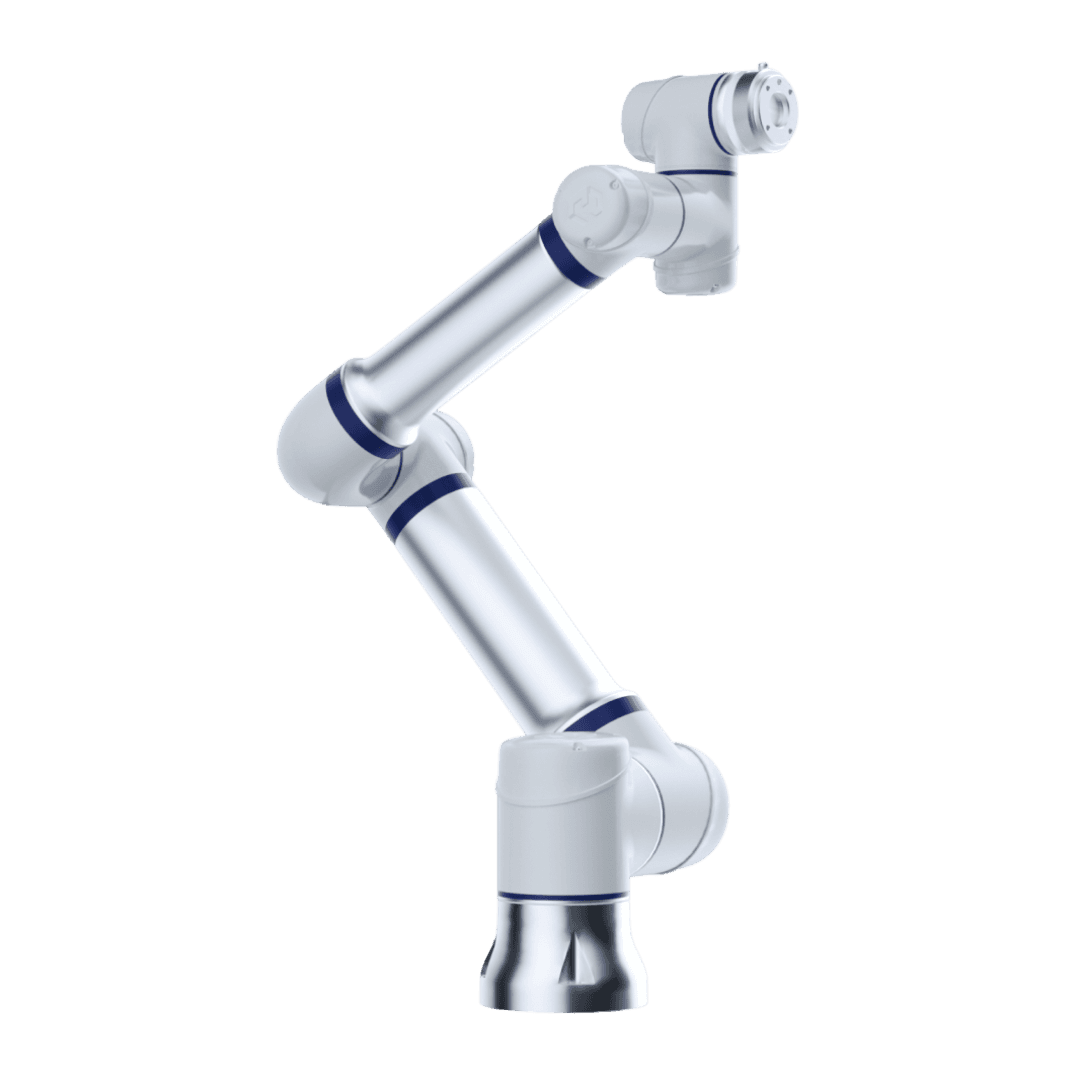

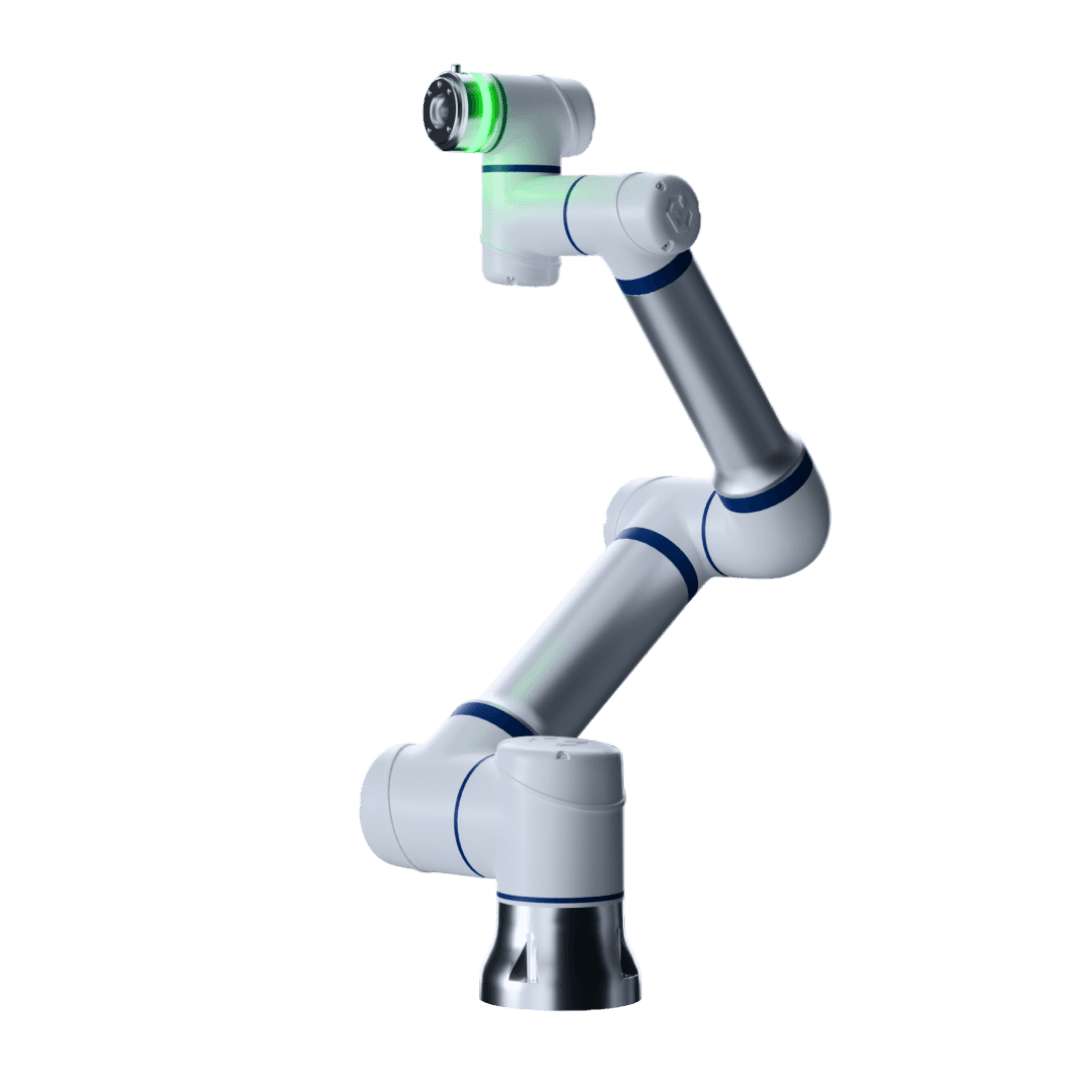

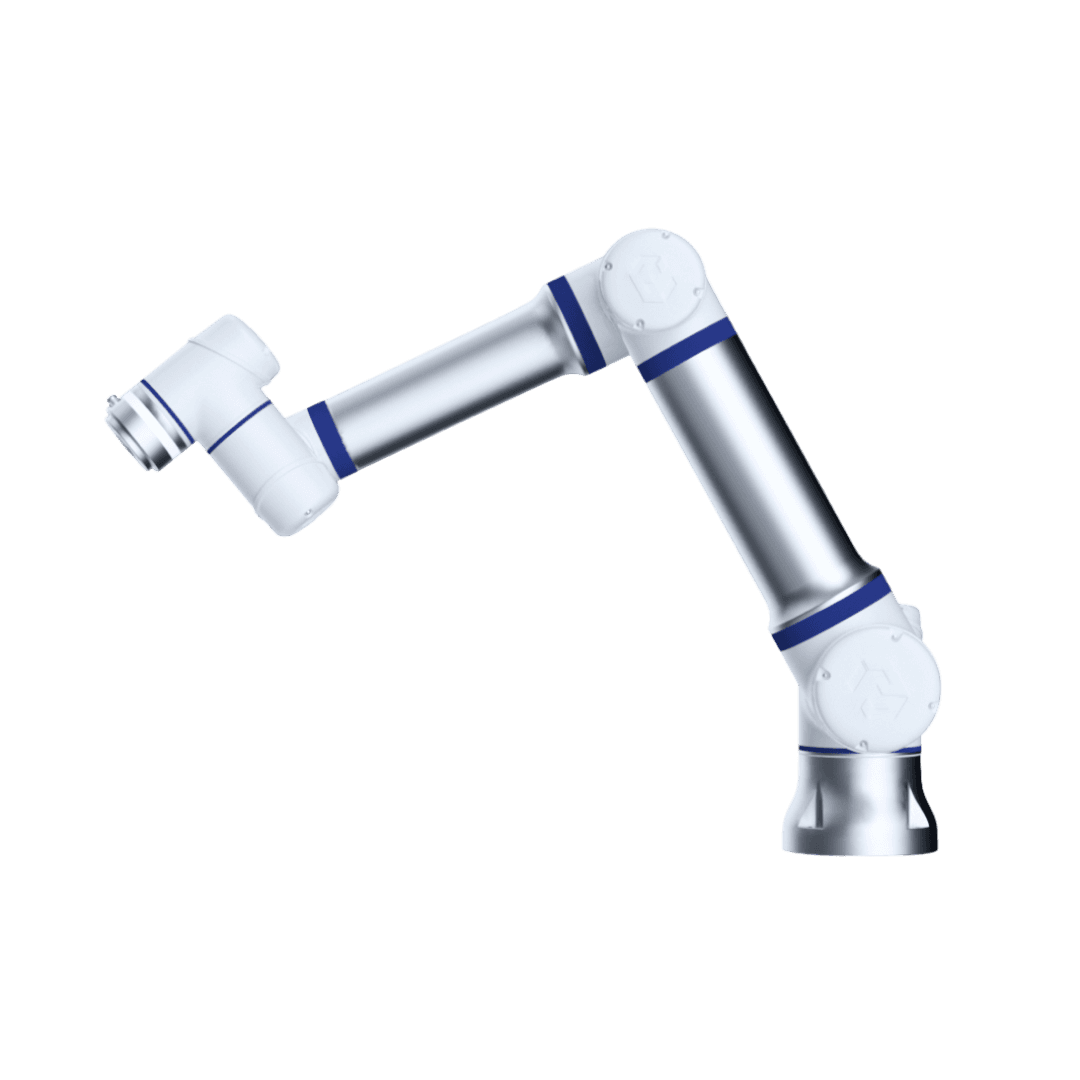

The Elite Robots CS66 is a 6-axis cobot with a 914 mm reach, 6 kg payload, and ±0.03 mm repeatability. With 1.5 m/s TCP speed, IP65 protection (optional IP68), and a compact 150 mm footprint, it’s ideal for space-saving automation.

The controller supports RS485, Modbus TCP/RTU, Ethernet/IP, Profinet, and TCP/IP. Programming is available via Python scripts, graphical UI, or drag-and-drop. Integration is possible via standard or OEM controllers.

Recommended for pick & place, assembly, dispensing, and light machine tending. Perfect for SMEs, integrators, and OEMs seeking a flexible, precise, and energy-efficient cobot.

ผลิตภัณฑ์นี้ไม่มีจำหน่ายในประเทศของคุณ

Repeatability
0.03
mm
Max Reach
914
mm
DOF
6
Max Payload
6
kg
Weight
20
kg
