Name: 2-Axis Delta | Small
Brand: igus®
SKU: RBTX-IGUS-0055
Price: 342,236.00 GBP
Availability: InStock

fairBanner

CommunityDesignLink

showCommunityLink

rbtxpert-button-de

rbtxpert-button-us

The 2-axis Delta was specially developed for extra fast pick & place tasks. It can be used for pick and place tasks, conveyor belt picking, sorting tasks or stacking tasks. The Delta robot as 2-axis kinematics is supplied in two different sizes with matching controllers.

The weight of an end effector will decrease the available payload of your robot.

2-Axis Delta | Small

Robots

Step & technical drawing

Technical documentation

D1 User manual

Stepper motors

Declaration of incorporation

Typical applications of our drylin® delta robots are pick and place, conveyor belt picking and stacking tasks in three-dimensional space. In combination with a gripper or suction cup, picking tasks can be implemented very quickly.

Application areas

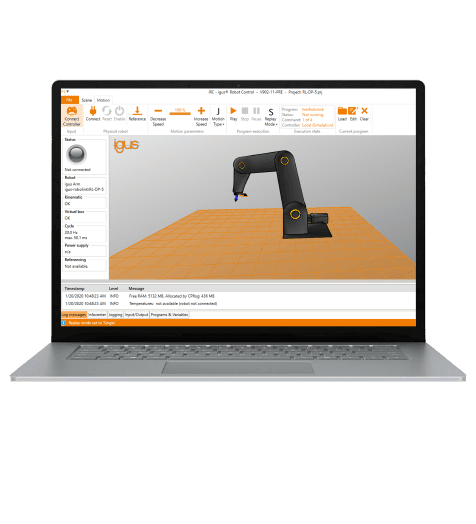

Download the software now free of charge. This allows you to familiarize yourself with the user interface and functions before purchasing the components. The Digital Twin gives you an overview of the possibilities of your robot. (System requirements: Windows 10, free USB 2.0 port, Ethernet port, 500 MB free disk space).
